my!WIND mast options
Mast alternatives - all for craneless erection
Self-supporting masts with central foundation

Our self-supporting masts stand on a heavy central foundation to hold up against attacking wind forces.

Steel tube segments of different diameters and lengths are flanged together with bolts.

my!WIND self-supporting masts are tiltable for easy turbine erection.

Guy wire masts with small blocks

my!WIND guy wire masts stand on a small platform; wind forces are lead into steel cables connected to small satellite foundations.

Steel tube segments of equal diameters and lengths are flanged together with bolts.

Our guy wire masts are tiltable for easy turbine installation.


Self-supporting masts with central foundation
Available hub heights10 and 16 m
MaterialSteel (foundation: concrete)
Number of tube segments2 pcs for 10 m (3 pcs for 16 m)
Surface areaca. 3x3 to 5x5 m for foundation
1 / 5
2 / 5

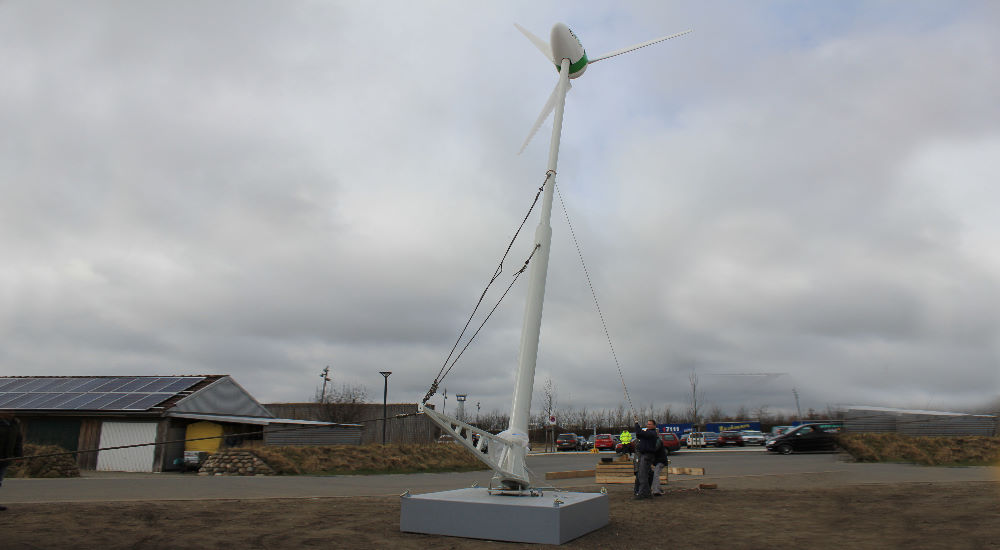

10 m version lifted up (with gin pole)
3 / 5

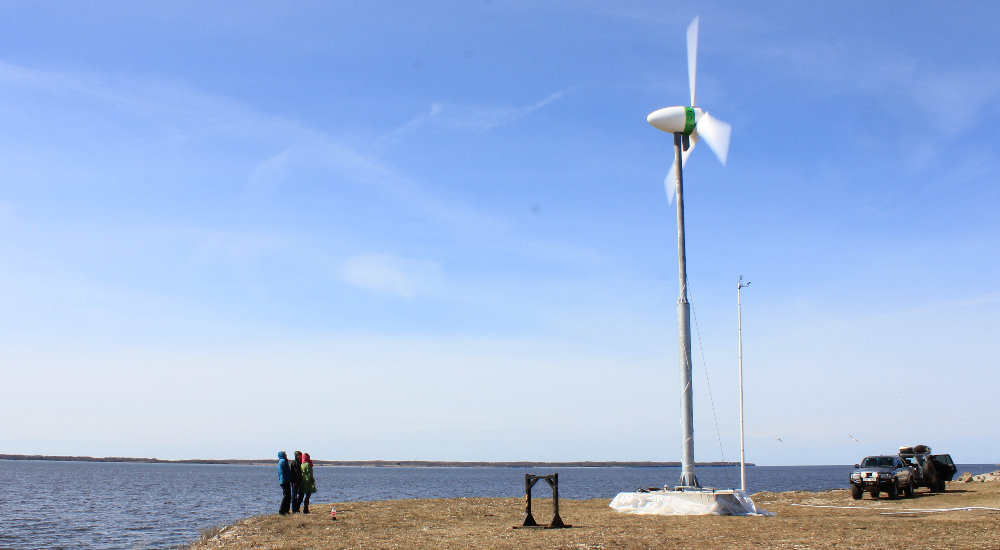

10 m version at Baltic Sea
4 / 5

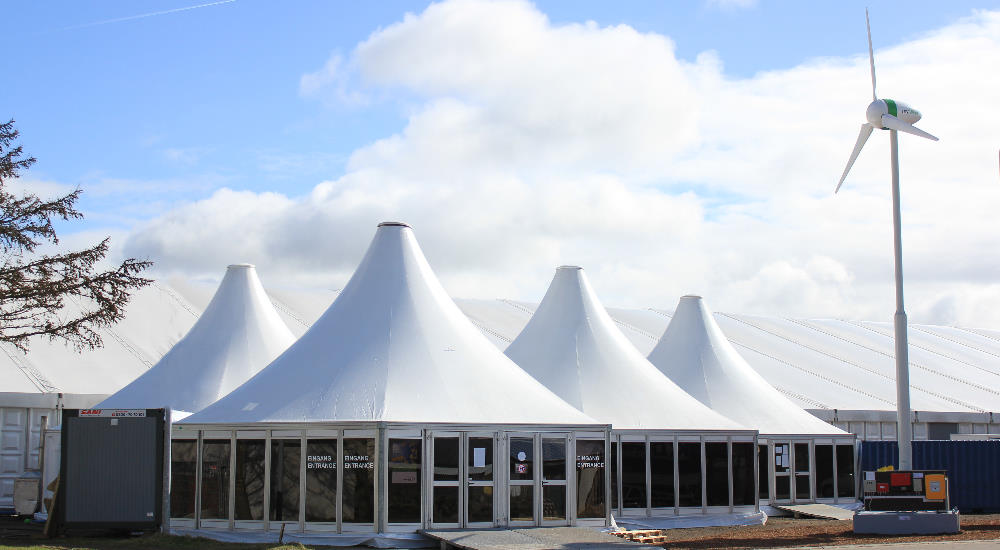

10 m my!WIND in front of Husum Fair
5 / 5

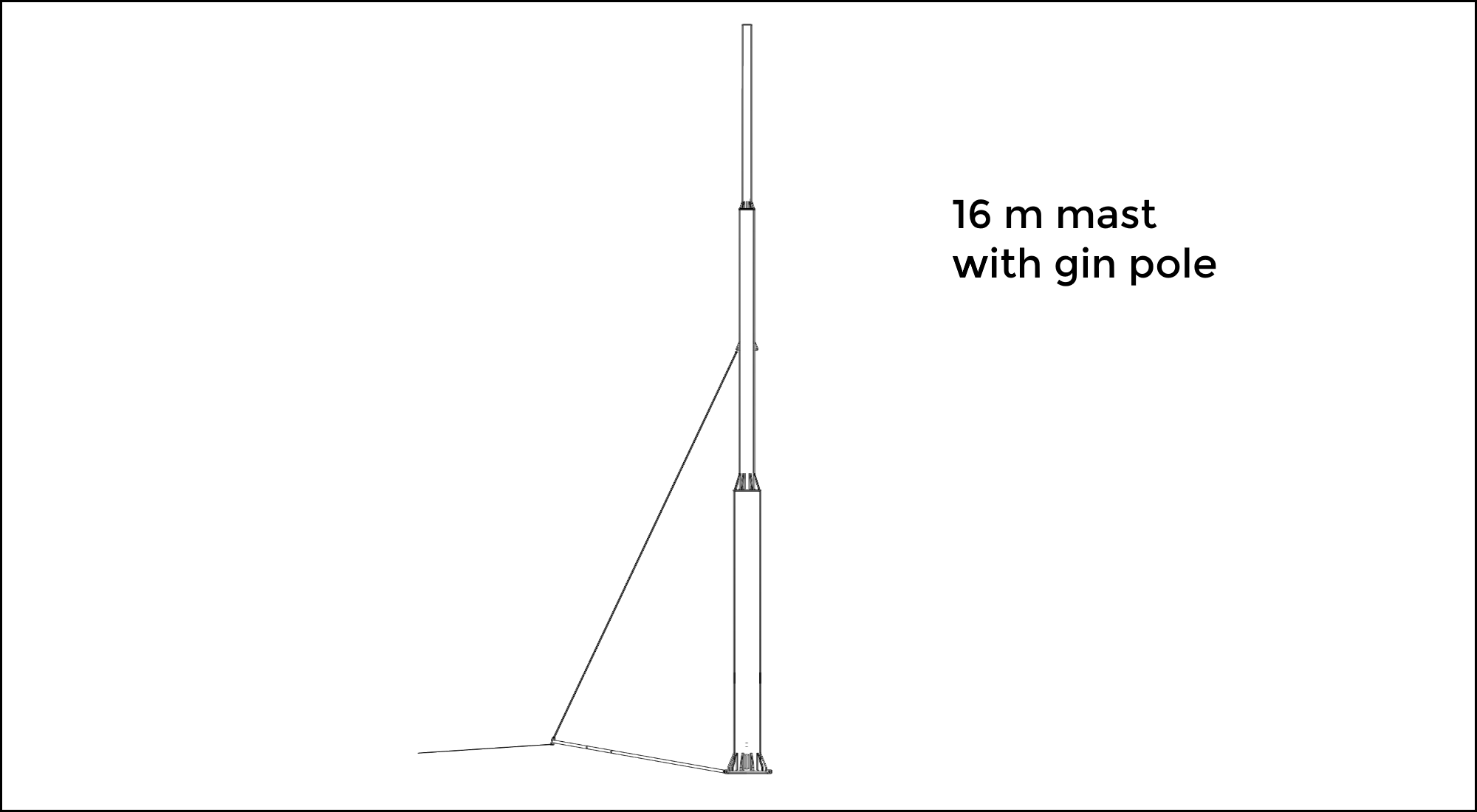

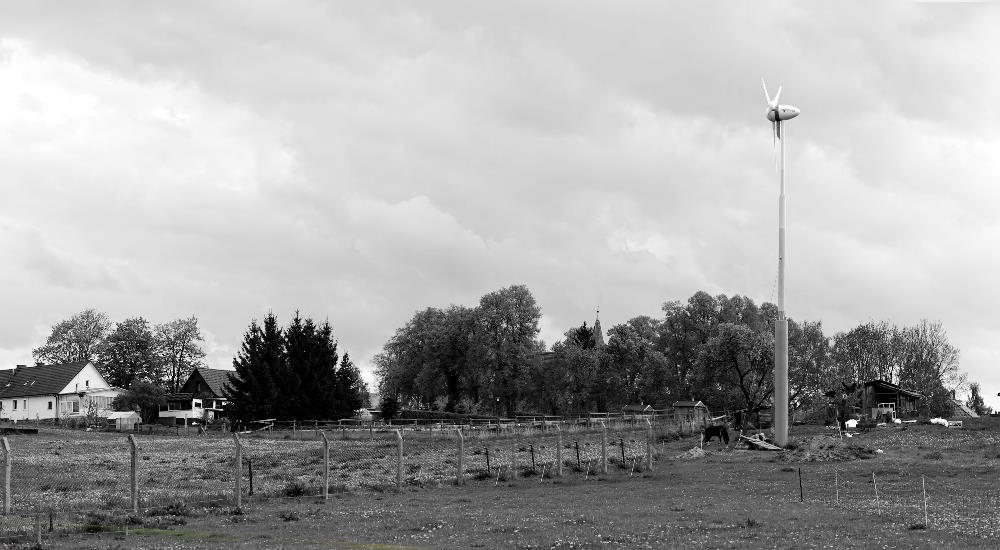

16 m self-supported mast
SLIDES PAUSE
Guy wire masts with small blocks

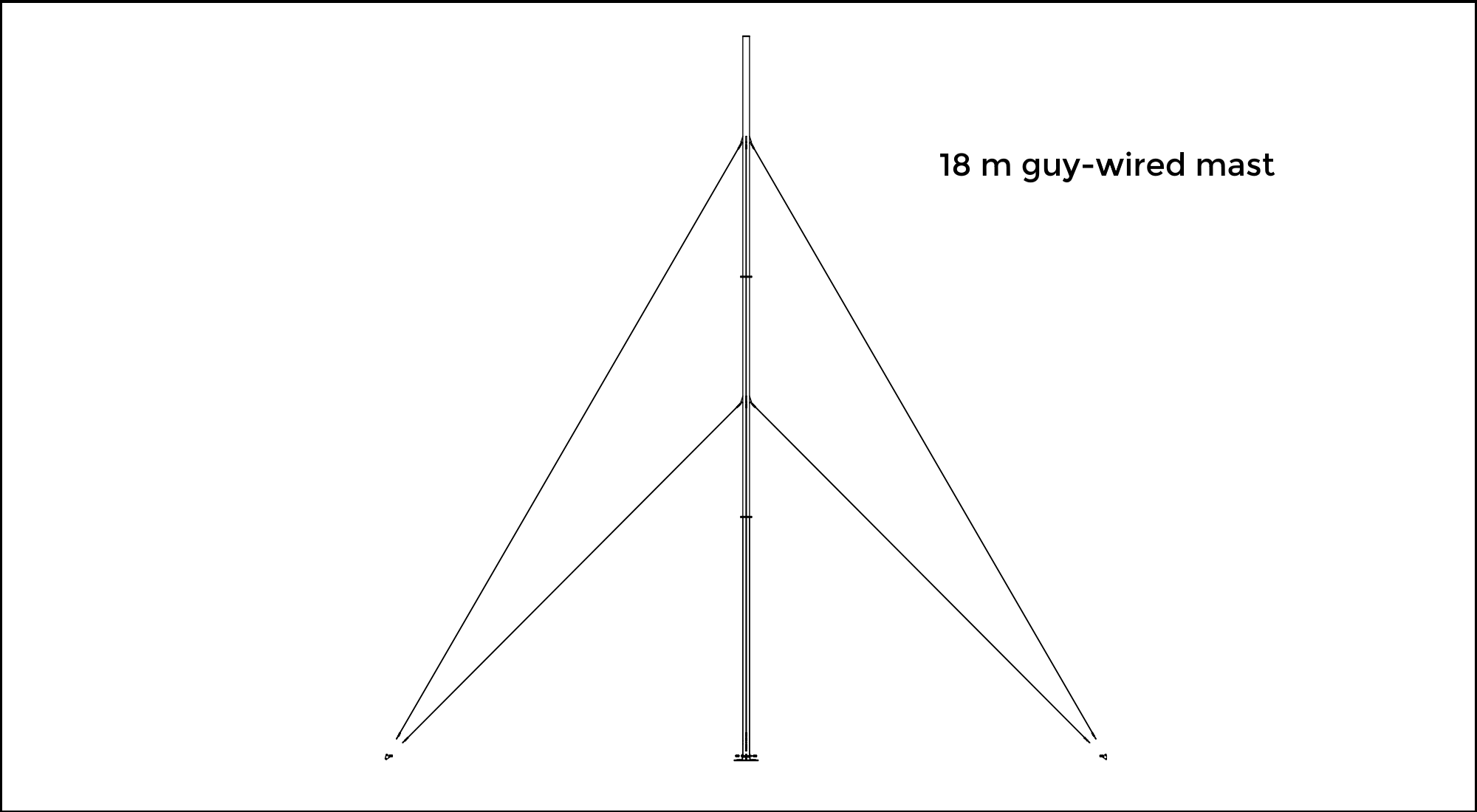

Available hub heights10 and 18 m
MaterialSteel (foundations: concrete)
Number of tube segments2 pcs for 10 m (3 pcs for 18 m)
Number of wires4 pcs for 10 m (8 pcs for 18 m)
Surface area10-18 m between foundations
1 / 4
2 / 4

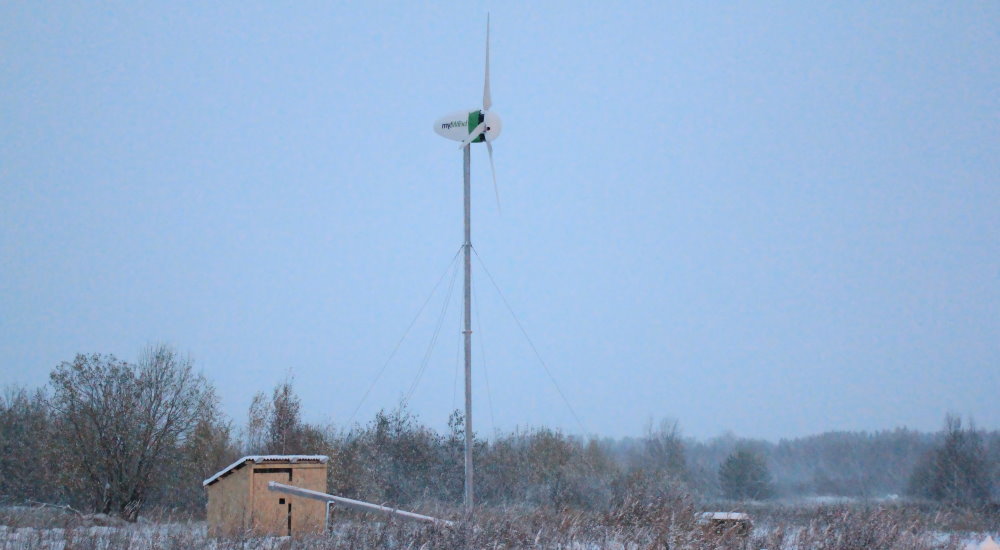

10 m version (one level of wires)
3 / 4

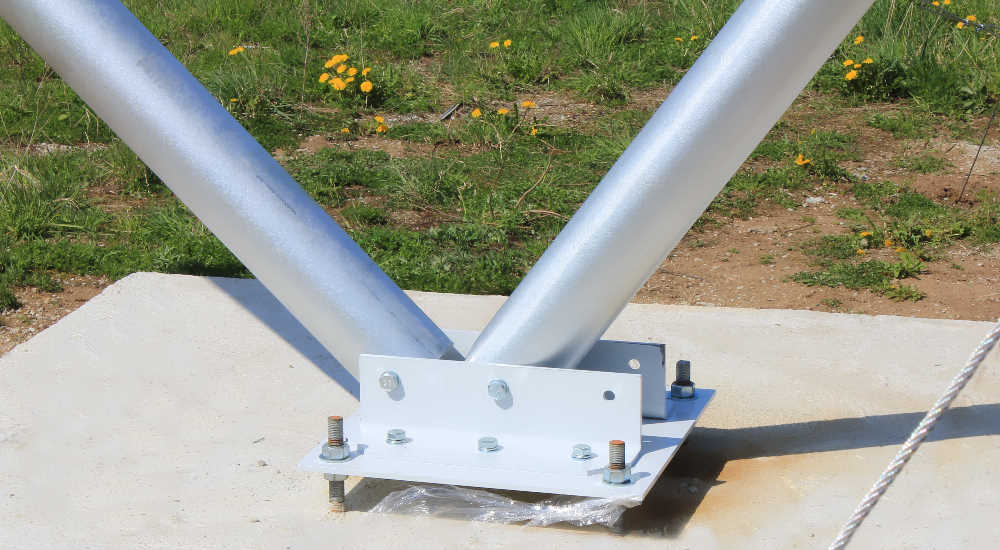

Hinge for easy lifting
4 / 4

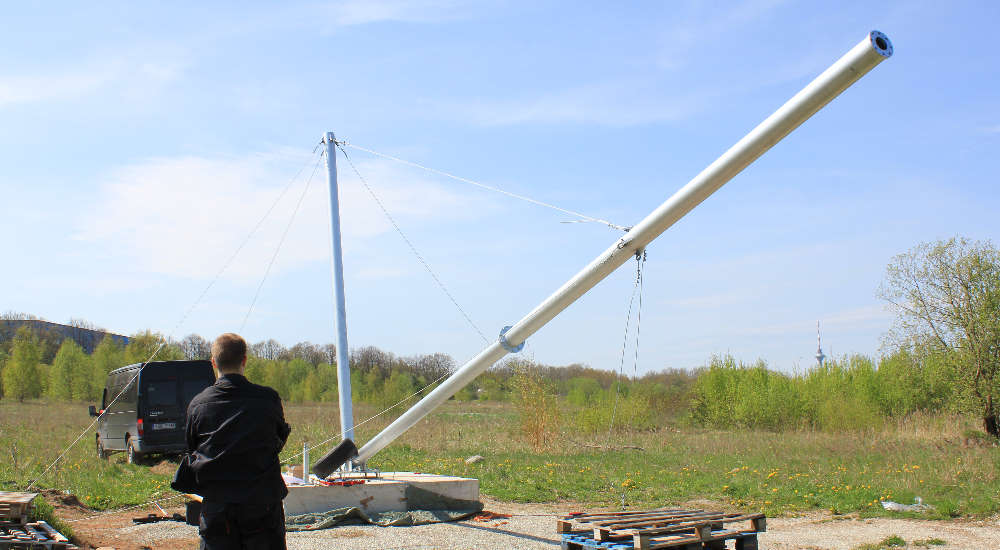

Erection with pulling vehicle
